| Package depth: | 218 |
| Wi-fi: | No |
| Package height: | 103 |
| Package type: | Box |
| Unit box height: | 0.1 |
| Unit box length: | 0.215 |

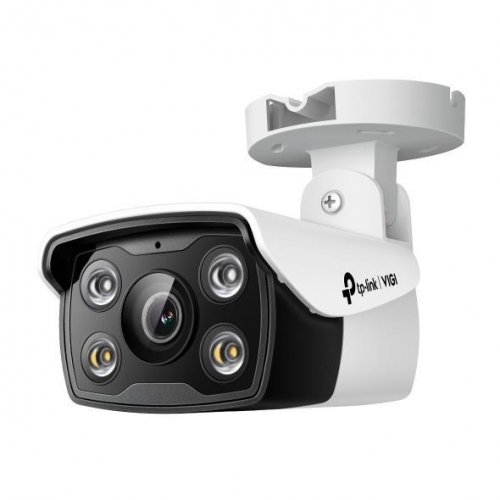

| Description: | All The Colors, All The Time 4MP Outdoor Full-Color Bullet Camera
Outdoor PoE Connection, Simple Wiring Just connect your camera via an RJ45 cable, then power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.
Clarity and Colors, All in One Monitor 24-hour clear and colorful details even in pitch dark night. VIGI’s Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
We keep an eye on your business. Smart Detection Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
Motion Detection Get instant notifications when your camera detects motion.
Area Intrusion Set customized activity zones around key areas for more focused monitoring.
Line-Crossing Set a boundary a |
| Unit box width: | 0.125 |
| Model: | VIGI C340(2.8MM) |
| Vendor homepage: | https://www.tp-link.com/en/business-networking/vigi-network-camera/vigi-c340/v1%20(6mm%20lens)/ |
| Power source type: | DC,PoE |
| Operating relative humidity (h-h): | 0 - 95 |
| Operating temperature (t-t): | -30 - 60 |
| Compliance certificates: | BSMI/CE/KC |
| Live view: | Jā |
| Networking standards: | IEEE 802.3af/IEEE 802.3at |
| Number of simultaneous live view channels: | 3 |
| Supported network protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Package weight: | 424 |
| Built-in hdd: | No |
| Card reader integrated: | Jā |
| Compatible memory cards: | MicroSD (TransFlash) |
| Storage relative humidity (h-h): | 0 - 95 |
| Signal-to-noise ratio (snr): | 52 |
| Bluetooth: | No |
| Ethernet interface type: | Fast Ethernet |
| Ethernet lan: | Jā |
| Https encryption: | Jā |
| Automatic network replenishment (anr): | Jā |
| Summary: | TP-Link VIGI 4MP Outdoor Full-Color Bullet Network Camera. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 102°, Lens viewing angle, vertical: 55°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 64 m, Observe distance: 27 m, Recognize distance: 13 m |
| Units per shipping box: | 1 |
| Unit calculated volume: | 0.002687 |
| Unit calculated weight: | 0.47 |
| Dc output voltage: | 12 |
| Power consumption (max): | 7 |
| Power consumption (typical): | 3.4 |
| Width: | 174 |
| Height: | 70 |
| Length: | 78 |
| Weight: | 280 |
| Maximum memory card size: | 256 |
| Dc-in jack: | Jā |
| Ethernet lan (rj-45) ports: | 1 |
| Storage temperature (t-t): | -40 - 60 |
| Housing material: | Plastic |
| International protection (ip) code: | IP66 |
| Led indicators: | Jā |
| Mounting type: | Ceiling/Wall/Pole |
| Product colour: | Black/White |
| Connectivity technology: | Wired |
| Day/night mode: | Jā |
| Placement supported: | Outdoor |
| Type: | IP security camera |
| Camera shutter speed: | 1/3 - 1/10000 |
| Lens viewing angle, diagonal: | 122 |
| Lens viewing angle, horizontal: | 102 |
| Lens viewing angle, vertical: | 55 |
| Minimum illumination: | 0.005 |
| Package width: | 128 |
| Sustainability compliance: | Jā |
| Manual: | Jā |
| Mounting kit: | Jā |
| Number of cameras: | 1 |
| Form factor: | Bullet |
| Ip address filtering: | Jā |
| Network access storage (nas): | Jā |
| Password protection: | Jā |
| Video motion detection: | Jā |
| Reset button: | Jā |
| Web browser: | Jā |
| Number of privacy masking areas: | 4 |
| Pan range: | -90 - 90 |
| Tilt angle range: | -90 - 90 |
| Number of sensors: | 1 |
| Optical sensor size: | 1/3 |
| Progressive scan: | Jā |
| Sensor type: | CMOS |
| Detect distance: | 64 |
| Fixed focal length: | 2.8 |
| Identify distance: | 6 |
| Maximum aperture number: | 1.6 |
| Number of lenses: | 1 |
| Observe distance: | 27 |
| Recognize distance: | 13 |
| Infra-red wavelength: | 850 |
| Led type: | IR |
| Night vision: | Jā |
| Night vision distance: | 30 |
| Number of illumination leds: | 2 |
| 3d positioning: | Jā |
| Back light compensation (blc): | Jā |
| Bit rate: | 256 Kbps - 4 Mbps |
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Digital wide dynamic range (dwdr): | Jā |
| Frame rate: | 30 |
| Highlight compensation (hlc): | Jā |
| Image quality adjustment: | Brightness/Contrast/Mirror/Saturation |
| Maximum resolution: | 2560 x 1440 |
| Privacy masking: | Jā |
| Region of interest (roi) encoding: | Jā |
| Smart ir: | Jā |
| Supported graphics resolutions: | 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440 |
| Total megapixels: | 4 |
| Video compression formats: | H.264/H.264+/H.265/H.265+ |
| Video formats supported: | H.264/H.264+/H.265/H.265+ |
| Audio input channels: | 1.0 |
| Audio output channels: | 1.0 |
| Audio system: | 2-way |
| Bit rate range: | 0 - 64 |
| Built-in microphone: | Jā |
| Built-in speaker(s): | Jā |
| Sample rate: | 8 |
