| Vendor homepage: | https://www.tp-link.com/en/business-networking/vigi-network-camera/vigi-c430/v1%20(2.8mm%20lens)/ |
| Description: | All The Colors, All The Time 3MP Full-Color Turret Network Camera
Clarity and Colors, All in One Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 3MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
Human & Vehicle Classification Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.
We keep an eye on your business. Smart Detection Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
No more silent surveillance. Built-In Microphone The VIGI camera features a built- |
| Unit box height: | 0.015 |
| Unit box length: | 0.16 |
| Unit box width: | 0.16 |
| Model: | VIGI C430(4MM) |
| Units per shipping box: | 1 |
| Unit calculated volume: | 0.000384 |
| Unit calculated weight: | 0.4 |

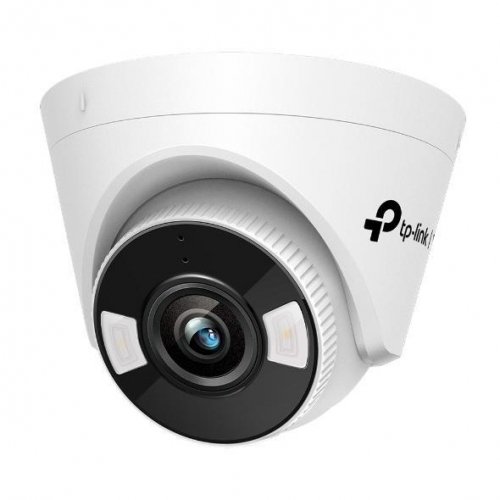

| Summary: | TP-Link VIGI C430. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Turret. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 107.5°, Lens viewing angle, vertical: 57.2°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Fixed focal length: 2.8 mm |
| Form factor: | Turret |
| Housing material: | Plastic |
| Mounting type: | Ceiling |
| Product colour: | Black/White |
| Connectivity technology: | Wired |
| Day/night mode: | Jā |
| Infrared (ir) cut-off filter: | Jā |
| Placement supported: | Indoor & outdoor |
| Type: | IP security camera |
| Wide dynamic range (wdr): | Jā |
| Lens viewing angle, diagonal: | 128.7 |
| Lens viewing angle, horizontal: | 107.5 |
| Lens viewing angle, vertical: | 57.2 |
| Minimum illumination: | 0.005 |
| Number of sensors: | 1 |
| Optical sensor size: | 1/2.8 |
| Progressive scan: | Jā |
| Sensor type: | CMOS |
| Fixed focal length: | 2.8 |
| Number of lenses: | 1 |
| Night vision: | Jā |
| Night vision distance: | 30 |
| 3d positioning: | Jā |
| Back light compensation (blc): | Jā |
| Bit rate: | 64 Kbps - 4 Mbps |
| Digital wide dynamic range (dwdr): | Jā |
| Frame rate: | 25 |
| Highlight compensation (hlc): | Jā |
| Image quality adjustment: | Brightness/Contrast/Mirror/Saturation |
| Maximum resolution: | 2304 x 1296 |
| Privacy masking: | Jā |
| Region of interest (roi) encoding: | Jā |
| Smart ir: | Jā |
| Supported graphics resolutions: | 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/320 x 240/352 x 288/640 x 480 (VGA)/704 x 576 |
| Total megapixels: | 3 |
| Video compression formats: | H.264/H.264+/H.265/H.265+ |
| Built-in microphone: | Jā |
| Bluetooth: | No |
| Ethernet lan: | Jā |
| Live view: | Jā |
| Networking standards: | IEEE 802.3af/IEEE 802.3at |
| Number of simultaneous live view channels: | 3 |
| Supported network protocols: | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Wi-fi: | No |
| Built-in hdd: | No |
| Ethernet lan (rj-45) ports: | 1 |
| Active tampering alarm: | Jā |
| Digest authentication: | Jā |
| Https encryption: | Jā |
| Human and vehicle targets classification: | Jā |
| Intelligent video surveillance (ivs) system features: | Human detection/Vehicle detection |
| Ip address filtering: | Jā |
| Mirror: | Jā |
| Password protection: | Jā |
| Password reset via email: | Jā |
| Video motion detection: | Jā |
| Behavior analysis: | Intrusion detection,Line crossing detection,Object removal detection,Region entrance detection,Region exiting detection |
| Power consumption (max): | 4.2 |
| Power source type: | DC,PoE |
| Operating temperature (t-t): | -30 - 60 |
| Depth: | 83 |
| Height: | 123 |
| Width: | 123 |
| Compliance certificates: | BSMI/CE |
| Sustainability compliance: | Jā |
| Manual: | Jā |
| Mounting kit: | Jā |
| Number of cameras: | 1 |
