| Unit calculated volume: | 0.009486 |
| Unit calculated weight: | 1.45 |
| Units per shipping box: | 1 |
| Esata ports quantity: | 1 |
| Unit box width: | 0.09 |
| Unit box height: | 0.31 |
| Vendor homepage: | https://www.dahuasecurity.com/products/All-Products/Network-Recorders/Lite-Series/NVR4-4KS3-Series/1HDD/NVR4104HS-4KS3 |
| Supported resolutions: | 1 HDMI, 1 VGA Simultaneous: HDMI: 3840 Ć— 2160, 1920 Ć— 1080, 1280 Ć— 1024, 1280 Ć— 720 VGA: 1920 Ć— 1080, 1280 Ć— 1024, 1280 Ć— 720 Heterogeneous: HDMI: 1920 Ć— 1080, 1280 Ć— 1024, 1280 Ć— 720 VGA: 1920 Ć— 1080, 1280 Ć— 1024, 1280 Ć— 720 |
| Unit box length: | 0.34 |
| Description: | The NVR4000-4KS3 model of the Lite Series NVR is favored for its outstanding performance. It supports 4K resolution for scenes that require highly detailed images, and can serve as the edge, central, or backup storage with an intuitive shortcut menu for remote management and control. This NVR also features Smart Motion Detection (SMD) by recorder, which can distinguish target vehicles and humans from ordinary ones in real-time. When an IPC is connected to the NVR, a variety of AI functions become available such as face detection, perimeter protection, and people counting. This NVR is both cost-effective and easy-to-install, making it ideal for a wide range of applications such as for cities, transportation, education and finance.
Functions
- SMD Plus
With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm. |
| Audio rca outputs: | 1 |
| Width: | 260 |
| Weight: | 810 |
| Input bandwidth: | 80 |
| Maximum resolution: | 3840 x 2160 |
| Video formats supported: | H.264/H.264+/H.265/H.265+ |
| Face detection: | Jā |
| Image formats supported: | MJPEG |
| Output current: | 2 |
| Output voltage: | 12 |
| Power consumption (typical): | 10 |
| Browser supported: | Chrome; IE; Safari; Edge; Firefox |
| Mobile operating systems supported: | Android/iOS |
| Operating relative humidity (h-h): | 10 - 93 |
| Operating temperature (t-t): | -10 - 55 |
| Storage temperature (t-t): | -20 - 60 |
| Depth: | 232.5 |
| Height: | 47.6 |
| Package depth: | 89 |
| Package height: | 314 |
| Package weight: | 1380 |
| Package width: | 334 |
| Rack capacity: | 1U |
| Rack mounting: | Jā |
| Built-in processor: | Jā |
| Multi-screen: | Jā |
| Operating system installed: | Embedded LINUX |
| Output bandwidth: | 60 |
| Product colour: | Black |
| Certification: | CE-LVD: IEC 62368-1:2014
CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014 |
| Vga (d-sub) output ports: | 1 |
| Hdmi ports quantity: | 1 |
| Power over ethernet (poe): | Jā |
| Supported network protocols: | HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.) |
| Usb 2.0 ports quantity: | 2 |
| Video recording modes: | 1080p/720p/960p |
| Wi-fi: | No |
| Maximum storage capacity: | 20 |
| Audio rca inputs: | 1 |

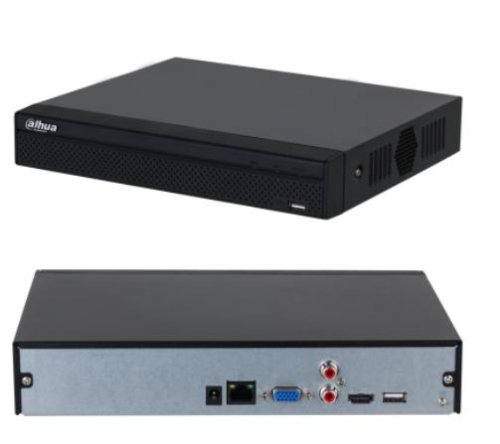

| Summary: | Dahua Technology Lite NVR4104HS-4KS3. Video input channels: 4 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 720p, 960p, 1080p. Maximum storage capacity: 20 TB. Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP;.... Rack capacity: 1U, Product colour: Black, Certification: CE-LVD: IEC 62368-1:2014 CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN.... Power consumption (typical): 10 W, Output current: 2 A, Output voltage: 12 V |
| Model name: | NVR4104HS-4KS3 |
| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan data rates: | 10/100 |
| Video input channels: | 4 |
| Video motion detection: | Jā |
| Audio formats supported: | G.711 Āµ-law/G.711 A-law/G.726/PCM |
