| Product colour: | Black |
| Output bandwidth: | 80 |
| Model: | NVR4104HS-P-EI |
| People counting: | Jā |
| Supported resolutions: | HDMI: 3840 Ć— 2160, 1920 Ć— 1080, 1280 Ć— 1024, 1280 Ć— 720
VGA: 1920 Ć— 1080, 1280 Ć— 1024, 1280 Ć— 720
*Simultaneous/heterogeneous video sources output for VGA and HDMI is configurable |
| Input bandwidth: | 80 |
| Maximum resolution: | 3840 x 2160 |
| Multi-screen: | Jā |
| Operating system installed: | Embedded LINUX |
| Vendor homepage: | https://www.dahuasecurity.com/products/All-Products/Network-Recorders/WizSense-Series/NVR-4-EI-Series/1-HDD/NVR4104HS-P-EI |
| Description: | - Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format
- Access, storage or forwarding at 80 Mbps
- Max. decoding capability: 16 Ć— 1080p@30 fps. Supports adaptive decoding
- AI by NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD Plus
- AI by Camera: Face detection and recognition, perimeter protection; SMD Plus; people counting; stereo analysis; heat map
- Connected to the third-party network cameras
- Security baseline 2.3
|
| Unit box width: | 0.115 |
| Unit box length: | 0.37 |
| Unit box height: | 0.305 |
| Model name: | NVR4104HS-P-EI |
| Width: | 260 |
| Units per shipping box: | 10 |
| Unit calculated volume: | 0.0151 |
| Unit calculated weight: | 2.1 |
| Image formats supported: | MJPEG |
| Wi-fi: | No |

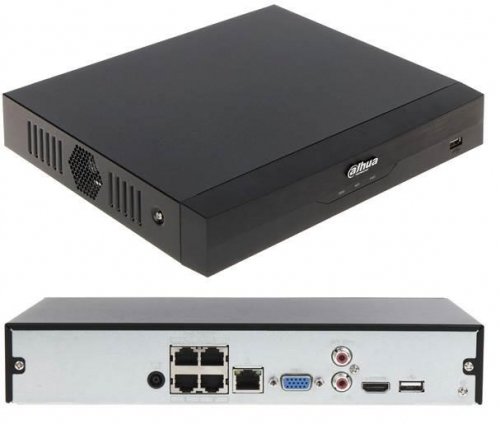

| Summary: | Dahua Technology WizSense NVR4104HS-P-EI. Video input channels: 4 channels, Maximum resolution: 3840 x 2160 pixels, Video recording modes: 720p, 960p, 1080p. Maximum storage capacity: 16 TB, HDD interface: SATA. Ethernet LAN data rates: 10,100 Mbit/s, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS;.... Rack capacity: 1U, Product colour: Black, Certification: EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN.... Power consumption (max): 10 W, Output current: 1.226 A |
| Operating relative humidity (h-h): | 10 - 93 |
| Operating temperature (t-t): | -10 - 55 |
| Storage temperature (t-t): | -20 - 60 |
| Compliance certificates: | CE/Federal Communications Commission (FCC) |
| Depth: | 232.7 |
| Height: | 47.6 |
| Package depth: | 89 |
| Package height: | 315 |
| Package weight: | 1880 |
| Weight: | 860 |
| Package width: | 333 |
| Hdmi ports quantity: | 1 |
| Supported network protocols: | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register |
| Hdmi output: | Jā |
| Units per pallet: | Nav |
| Hdd interface: | SATA |
| Maximum storage capacity: | 16 |
| Audio rca inputs: | 1 |
| Audio rca outputs: | 1 |
| Dc-in jack: | Jā |
| Ethernet lan (rj-45) ports: | 1 |
| Ethernet lan data rates: | 10/100 |
| Rack capacity: | 1U |
| Rack mounting: | Jā |
| Output current: | 1.226 |
| Power consumption (max): | 10 |
| Browser supported: | Chrome; IE9 and later; Firefox |
| Mobile operating systems supported: | Android/iOS |
| Usb 2.0 ports quantity: | 2 |
| Vga (d-sub) output ports: | 1 |
| Certification: | EN IEC 61000-3-2:2019+A1:2021;
EN 61000-3-3:2013+A1:2019+A2:2021; EN
55035:2017+A11:2020; EN 50130-4:2011+A1:2014
CE-LVD: EN 62368-1:2014 |
| Video input channels: | 4 |
| Video recording modes: | 1080p/720p/960p |
| Video formats supported: | H.264/H.264+/H.265/H.265+ |
| Audio formats supported: | G.711 µ-law/G.711 A-law/G.726/PCM |
| Backup function: | Jā |
| Face detection: | Jā |
