| Unit calculated volume: | 0.004627 |
| Units per shipping box: | 10 |

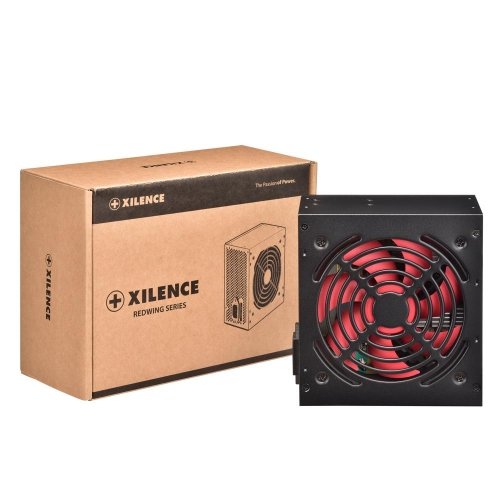

| Summary: | Xilence Performance A+ XN054. Total power: 700 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 45 cm, PCI Express power cable length: 50 cm. Purpose: PC, Power supply unit (PSU) form factor: ATX, Bearing technology: FDB. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Compliance certificates: RoHS, WEEE |
| Package height: | 100 |
| Description: | The latest generation of Redwing power supplies combines an exciting design with modern technology and top quality. In the current revision, the power supply series has been completely revised and adapted to the demands of today's computer systems. The result not only convinces through its efficient technic, but with its modern design and high stability. The connections have been coordinated to current systems and four integrated safety circuits always ensure safe operation. |
| On/off switch: | Jā |
| Vendor homepage: | https://www.xilence.net/en/power-supplies/25 |
| Package depth: | 165 |
| Pci express power connectors (6-pin): | 1 |
| Peripheral (molex) power connectors (4-pin): | 2 |
| Atx version: | 2.31 |
| Unit calculated weight: | 1.6 |
| Unit box width: | 0.165 |
| Unit box length: | 0.23 |
| Unit box height: | 0.1 |
| Package weight: | 1840 |
| Bearing technology: | FDB |
| Power supply unit (psu) form factor: | ATX |
| Purpose: | PC |
| Cooling type: | Active |
| Fan diameter: | 120 |
| Fan location: | Top |
| Number of fans: | 1 |
| Package width: | 225 |
| Package type: | Box |
| Pci express power cable length: | 500 |
| Pci express power connectors (6+2 pin): | 1 |
| Product colour: | Black |
| Compliance certificates: | RoHS/WEEE |
| Pci express connector: | Jā |
| Ac input frequency: | 50 |
| Ac input voltage: | 200 - 240 |
| Combined power (+12v): | 648 |
| Combined power (+3.3v): | 120 |
| Combined power (+5v): | 120 |
| Input current: | 8 |
| Max output current (+12v): | 54 |
| Max output current (+3.3v): | 24 |
| Max output current (+5v): | 18 |
| Max output current (+5vsb): | 2.5 |
| Max output current (-12v): | 0.5 |
| Power factor correction (pfc) type: | Passive |
| Power protection features: | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage |
| Total power: | 700 |
| Atx power connector (20+4 pin): | Jā |
| Cabling type: | Non-Modular |
| Cpu p4 connector (4-pin): | 1 |
| Cpu power cable length: | 550 |
| Motherboard power cable length: | 450 |
| Motherboard power connector: | 20+4 pin ATX |
| Number of sata power connectors: | 6 |
| Units per pallet: | Nav |
