| Jumbo frames support: | Jā |
| Mac address table: | 2000 |
| Store-and-forward: | Jā |

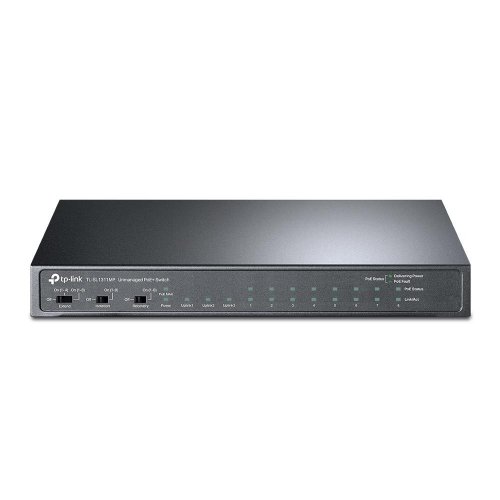

| Summary: | TP-Link 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 10. MAC address table: 2000 entries, Switching capacity: 7.6 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE) |
| Unit box height: | 0.07 |
| Model name: | 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+ |
| Units per shipping box: | 1 |
| Model: | TL-SL1311MP |
| Unit calculated volume: | 0.005348 |
| Description: | What This Product Does TP-Link desktop switch TL-SL1311MP is an unmanaged switch with 8Ć— 10/100Mbps ports and 3Ć— Gigabit ports that requires no configuration. With 8Ć— PoE (Power over Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Professional 11-Port Switch with 8-Port PoE+ (124 W Budget) for Numerous Applications Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 124 W PoE power budget* for the 8Ć— PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
I |
| Number of fans: | Nav |
| Product colour: | Black |
| Vendor homepage: | https://www.tp-link.com/uk/business-networking/unmanaged-switch/tl-sl1311mp/ |
| Unit box length: | 0.317 |
| Switch type: | Unmanaged |
| Unit box width: | 0.241 |
| Basic switching rj-45 ethernet ports quantity: | 10 |
| Forwarding rate: | 5.6544 |
| Unit calculated weight: | 1.55 |
| Basic switching rj-45 ethernet ports type: | Fast Ethernet (10/100) |
| Rack mounting: | No |
| Dc input voltage: | 53.5 |
| Input current: | 2.43 |
| Number of power supply units: | 1 |
| Power supply included: | Jā |
| Power over ethernet (poe): | Jā |
| Power over ethernet plus (poe+) ports quantity: | 8 |
| Total power over ethernet (poe) budget: | 124 |
| Operating relative humidity (h-h): | 10 - 90 |
| Operating temperature (t-t): | 0 - 40 |
| Storage relative humidity (h-h): | 5 - 90 |
| Storage temperature (t-t): | -40 - 70 |
| Depth: | 126 |
| Height: | 26 |
| Width: | 209 |
| Manual: | Jā |
| Package type: | Box |
| Harmonized system (hs) code: | 85176990 |
| Power connector: | DC-in jack |
| Sfp module slots quantity: | 1 |
| 10g support: | No |
| Auto mdi/mdi-x: | Jā |
| Auto-negotiation: | Jā |
| Cable types supported: | Cat3/Cat4/Cat5/Cat5e |
| Copper ethernet cabling technology: | 100BASE-TX/10BASE-T |
| Networking standards: | IEEE 802.3af/IEEE 802.3at |
| Jumbo frames: | 16000 |
| Switching capacity: | 7.6 |
