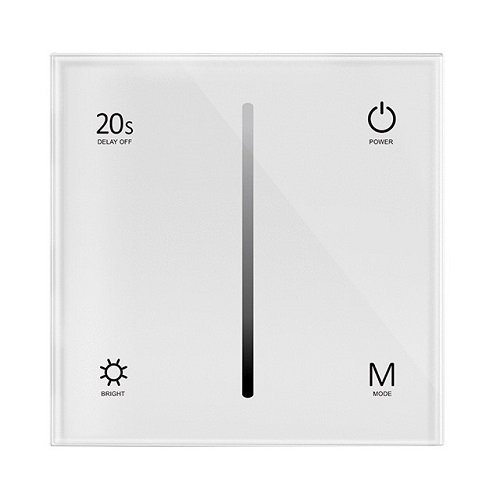

Skydance Touch Panel Dimmer T1-1, 12-48VDC, 2Ch

Wall-mounted dimming LED controller, PWM constant voltage controller, 12-48DC 2x 3/5A, for single-color LED strips, 2 channels, with touch buttons and touch slide, supports 10 lighting levels and dynamic 6-speed mode.


Features:
The controller supports single-color lighting systems for controlling up to 2 dimmable LED strips.
Allows smooth dimming or brightening of lighting. Soft dimming, switching on and off without flicker. You can control LED strips directly from the controller, without additional receivers.
Separate convenient on/off button.
The touch slide allows you to conveniently adjust the brightness of the lighting in 10 levels.
Dynamic mode allows you to choose from 6 speeds.
Separate off button for turning off the light with a 20-second delay.
The controller uses PWM output to adjust the LED brightness by switching current pulses.
Supports RF 2.4GHz single or multi-zone remote control.
Luxurious design, glass panel. Mounted on the wall as a switch.
The control regulator is universal, can work with various LED controllers and is compatible with remote controls.
The device has integrated protection against short circuit, overheating and reverse polarity.


Specifications:
Product model: T1-1.
Number of channels: 2.
Lighting systems: single-color.
Voltage: 12-48V DC.
Input current: 10.5A.
Output current: 5A@12-24V / 3A@36-48V (per channel).
Power: 120-288W.
Dimming range: 0-100%.
PWM frequency: 1KHz / 2KHz / 8KHz / 16KHz.
Control area: 4 touch buttons, 1 touch slide.
Protection class: IP20 (not waterproof).
Certificates: CE, EMC, LVD, RED, RoHS, FCC.
Operating temperature: -30~+55°C.
Compatible wire cross-section: 0.5-2.0 mm².
Dimensions: 86 x 86 x 33 mm.
Color: white.


Warranty: 24 months.
