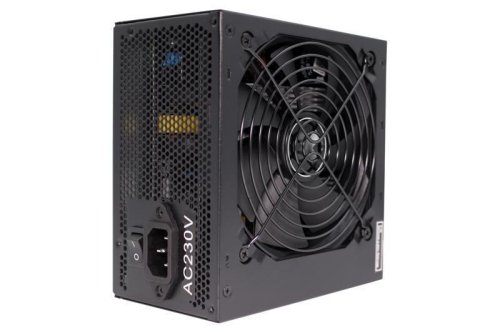

| Model name: | Performance C+ | XP650R6.2 |
| Vendor homepage: | https://www.xilence.net/en/power-supplies/242 |
| Efficiency: | 82 |
| Description: | The C+Series is a power supply series with the ATX standard 2.52 and black ribbon cables. The power supplies are designed for office and home computers, but can also be installed in PCs that are occasionally used for gaming. The black design of the power supplies and the elegant flat ribbon cables blend visually into any PC build. The power supplies deliver stable voltages with high efficiency (80+ Standard) to meet the ErP2014 standard. The integrated black 120mm fan provides silent cooling. Four integrated safety circuits ensure safe operation at all times. |
| Product colour: | Black |
| Unit calculated volume: | 0.005223 |
| Unit calculated weight: | 1.67 |
| Summary: | Xilence Performance C XP650R6.2. Total power: 650 W, AC input voltage: 200 - 240 V, AC input frequency: 50 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 50 cm, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm |
| Ac input frequency: | 50 |
| Number of fans: | 1 |
| Fan diameter: | 120 |
| Cooling type: | Active |
| Total power: | 650 |
| Cabling type: | Non-Modular |
| Motherboard power cable length: | 500 |
| Motherboard power connector: | 20+4 pin ATX |
| Number of pata power connectors: | 3 |
| Number of sata power connectors: | 5 |
| Pci express power connectors (6+2 pin): | 2 |
| 80 plus certification: | 80 PLUS Gold |
| Bearing technology: | Hypro Bearing |
| Power supply unit (psu) form factor: | ATX |
| Purpose: | PC |
| Power protection features: | Over voltage/Overload/Short circuit/Under voltage |
| Ac input voltage: | 200 - 240 |
| Input current: | 10 |
| Max output current (+12v1): | 48 |
| Max output current (+3.3v): | 23 |
| Max output current (+5v): | 17 |
| Max output current (+5vsb): | 2.5 |
| Max output current (-12v): | 0.5 |
| Power factor correction (pfc) type: | Active |
| Unit box height: | 0.08 |
| Unit box length: | 0.15 |
| Unit box width: | 0.14 |
| Units per pallet: | Nav |
| Units per shipping box: | 10 |
