| Unit calculated weight: | 3.45 |
| Ssd capacity: | 2000 |
| Model name: | DUO |
| Units per shipping box: | 1 |
| Unit box width: | 0.1 |

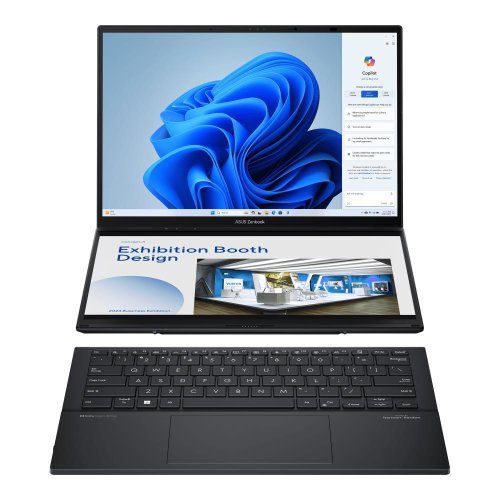

| Summary: | ASUS Zenbook Duo UX8406CA-PZ009W. Product type: Hybrid (2-in-1), Form factor: Convertible (Detachable). Processor family: Intel Core Ultra 9, Processor model: 285H. Display diagonal: 35.6 cm (14"), HD type: 3K, Display resolution: 2880 x 1800 pixels, Touchscreen. Internal memory: 32 GB, Internal memory type: LPDDR5x-SDRAM. Total storage capacity: 2 TB, Storage media: SSD. On-board graphics card model: Intel Arc 140T. Operating system installed: Windows 11 Home. Product colour: Grey |
| Infrared (ir) camera: | Jā |
| Bluetooth: | Jā |
| Unit calculated volume: | 0.01288 |
| Ac adapter frequency: | 50 - 60 |
| Unit box length: | 0.46 |
| Unit box height: | 0.28 |
| Width: | 313.5 |
| Depth: | 217.9 |
| Touchscreen: | Jā |
| Nb family name: | ZenBook Series |
| Vendor homepage: | https://www.asus.com/laptops/for-home/zenbook/asus-zenbook-duo-2024-ux8406/ |
| Front camera resolution: | 1920 x 1080 |
| Description: | Letā€™s DUO it
ASUS Zenbook DUO is a revolutionary dual-screen laptop, with two full-size OLED touchscreens1, detachable full-size keyboard and built-in kickstand, ā€” expertly combining multitasking versatility with superb mobility. With dual 14-inch 3K OLED 120 Hz displays, you can instantly expand your workspace to up to 19.8 inches. Outstanding performance is assured with up to an AI-powered IntelĀ® Coreā„¢ Ultra 9 processor and 32 GB LPDDR5x memory, plus up to a 2 TB PCIeĀ® 4.0 SSD. Paired with dedicated smart software, intuitive gesture control and an enhanced-lifespan 75 Wh battery, the easy-to-use Zenbook DUO maximizes productivity, with zero fuss. Come on ā€” Letā€™s DUO it.
Portable DUO
Compact with a big vision
Two stunning 14-inch ASUS Lumina OLED touchscreens2 provide up to 19.8 inches of workspace, instantly ā€” all in one incredibly versatile, easily portable device.
Easily charge and connect with keyboard
Pogo pin connection ā€“ power and pair |
| Number of battery cells: | 4 |
| Thunderbolt 4 ports quantity: | 2 |
| Usb 3.2 gen 1 (3.1 gen 1) type-a ports quantity: | 1 |
| Usb type-c displayport alternate mode: | Jā |
| Repairability index: | 9.4 |
| Numeric keypad: | No |
| Pointing device: | Touchpad |
| Operating system architecture: | 64-bit |
| Operating system installed: | Windows 11 Home |
| Battery capacity: | 75 |
| Battery life (max): | 8 |
| Battery technology: | Lithium-Ion (Li-Ion) |
| Efficient cores: | 8 |
| Efficient-core base frequency: | 2.7 |
| Efficient-core max turbo frequency: | 4.5 |
| Low power efficient-core base frequency: | 1000 |
| Low power efficient-core max turbo frequency: | 2.5 |
| Low power efficient-cores: | 2 |
| Maximum turbo power: | 115 |
| Performance cores: | 6 |
| Performance-core base frequency: | 2.9 |
| Performance-core max turbo frequency: | 5.4 |
| Processor base power: | 45 |
| Processor boost frequency: | 5.4 |
| Processor cache: | 24 |
| Processor cores: | 16 |
| Processor family: | Intel Core Ultra 9 |
| Processor generation: | Intel Core Ultra (Series 2) |
| Processor manufacturer: | Intel |
| Processor model: | 285H |
| Processor threads: | 16 |
| Colour gamut: | 100 |
| Contrast ratio (typical): | 1000000:1 |
| Display brightness: | 400 |
| Display diagonal: | 14 |
| Display number of colours: | 1.07 billion colours |
| Display resolution: | 2880 x 1800 |
| Display response rise/fall: | 0.2 |
| Display surface: | Gloss |
| Hd type: | 3K |
| High dynamic range (hdr) supported: | Jā |
| High dynamic range (hdr) technology: | HDR True Black 500 |
| Low blue light technology: | Jā |
| Maximum display brightness (hdr): | 500 |
| Maximum refresh rate: | 120 |
| Native aspect ratio: | 16:10 |
| Panel type: | OLED |
| Rgb colour space: | DCI-P3 |
| Colour name: | Inkwell Gray |
| Form factor: | Convertible (Detachable) |
| Housing material: | Aluminium,Magnesium |
| Introduction year: | 2024 |
| Market positioning: | Home |
| Product colour: | Grey |
| Product type: | Hybrid (2-in-1) |
| Ai software frameworks supported by npu: | DirectML/ONNX RT/OpenVINO/WebNN/Windows ML |
| Gpu performance up to: | 77 |
| Neural processor unit (npu): | Intel AI Boost |
| Npu performance up to: | 13 |
| Sparsity support: | Jā |
| Total processor performance up to: | 99 |
| Windows studio effects support: | Jā |
| Internal memory: | 32 |
| Internal memory type: | LPDDR5x-SDRAM |
| Maximum internal memory: | 32 |
| Memory form factor: | On-board |
| Number of ssds installed: | 1 |
| Nvme: | Jā |
| Optical drive type: | No |
| Ssd form factor: | M.2 |
| Ssd interface: | PCI Express 4.0 |
| Storage media: | SSD |
| Total ssds capacity: | 2000 |
| Total storage capacity: | 2000 |
| Discrete graphics card: | No |
| Discrete graphics card model: | Not available |
| On-board gpu manufacturer: | Intel |
| On-board graphics card: | Jā |
| On-board graphics card family: | Intel Arc Graphics |
| On-board graphics card model: | Intel Arc 140T |
| Audio system: | Smart Amp |
| Built-in microphone: | Jā |
| Speakers manufacturer: | Harman Kardon |
| Front camera: | Jā |
| Front camera hd type: | Full HD |
| Ac adapter input voltage: | 100 - 240 |
| Ac adapter output current: | 3.25 |
| Ac adapter output voltage: | 20 |
| Ac adapter power: | 65 |
| Usb power delivery (usb pd): | Jā |
| Usb type-c charging port: | Jā |
| Face recognition: | Jā |
| Trusted platform module (tpm): | Jā |
| Windows hello: | Jā |
| Sustainability certificates: | ENERGY STAR/EPEAT Gold |
| Height (front): | 14.6 |
| Height (rear): | 19.9 |
| Weight: | 1650 |
| Ac adapter included: | Jā |
| Antenna type: | 2x2 |
| Bluetooth version: | 5.4 |
| Ethernet lan: | No |
| Mobile network connection: | No |
| Top wi-fi standard: | Wi-Fi 7 (802.11be) |
| Wi-fi standards: | Wi-Fi 7 (802.11be) |
| Combo headphone/mic port: | Jā |
| Hdmi ports quantity: | 1 |
| Hdmi version: | 2.1 |
| Intelā® thunderbolt 4: | Jā |
