| Unit box length: | 0.11 |
| Unit box height: | 0.01 |
| Cable type: | Round cable |

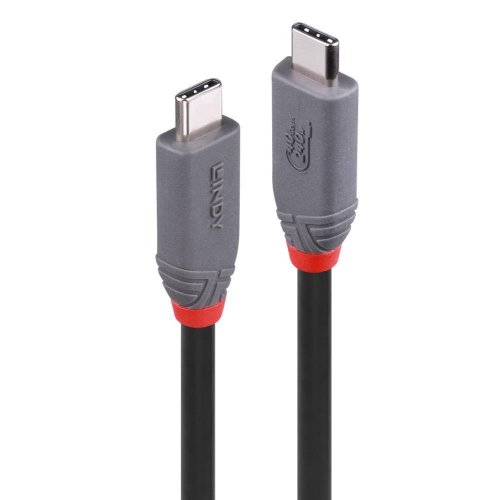

| Summary: | Lindy 0.8m USB 4 240W Type C Cable, Anthra Line. Cable length: 0.8 m. Connector 1: USB C, Connector 2: USB C, USB version: USB4 Gen 3x2, Maximum data transfer rate: 40 Gbit/s, Connector contacts plating: Gold, Product colour: Black |
| Description: | The fully-featured Anthra Line USB 4 Type C to C cable from Lindy's Cable Lines concept is the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 4 cables are premium connections that feature triple shielded construction with silver plated copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.
USB bandwidths up to 40Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 240W (48V 5A Extended Power Range) of power to devices using the most efficient power delivery profiles. It supports connecting a 8K or dual 4K UHD displays for stunning contrast and colour depth.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host |
| Vendor homepage: | https://www.lindy.co.uk/cables-adapters-c1/usb-c449/0-8m-usb-4-240w-type-c-cable-anthra-line-p14851 |
| Cable length: | 0.8 |
| Unit box width: | 0.11 |
| Awg wire size: | 23/30/34 |
| Cable jacket material: | Thermoplastic elastomer (TPE) |
| Units per shipping box: | 1 |
| Unit calculated volume: | 0.000121 |
| Unit calculated weight: | 0.05 |
| Connector 1 form factor: | Straight |
| Conductor material: | Copper |
| Connector 1: | USB C |
| Bend radius (min): | 28.8 |
| Cable diameter: | 4.8 |
| Connector 1 dimensions (wxdxh): | 30 x 12.4 x 6.5 |
| Connector 2 dimensions (wxdxh): | 30 x 12.4 x 6.5 |
| Connector 2: | USB C |
| Connector 2 form factor: | Straight |
| Connector 2 gender: | Male |
| Connector contacts plating: | Gold |
| Connector material: | Nickel |
| Connector shield material: | Copper |
| Connector shielding: | Jā |
| Maximum data transfer rate: | 40000 |
| Maximum refresh rate: | 60 |
| Maximum resolution: | 3840 x 2160 |
| Plug and play: | Jā |
| Product colour: | Black |
| Usb power delivery (usb pd): | Jā |
| Usb power delivery revision: | 3.1 |
| Usb power delivery up to: | 240 |
| Usb version: | USB4 Gen 3x2 |
| Quantity per pack: | 1 |
| Sustainability certificates: | UL ECOLOGO |
| Sustainability compliance: | Jā |
| Operating temperature (t-t): | -20 - 40 |
| Storage temperature (t-t): | -40 - 80 |
| Certification: | RoHS, REACH, California Proposition 65 & UL |
| Compliance certificates: | REACH/RoHS |
| Un number: | ` |
| Warranty period: | 2 |
| Model name: | 0.8m USB 4 240W Type C Cable, Anthra Line |
| Connector 1 gender: | Male |
