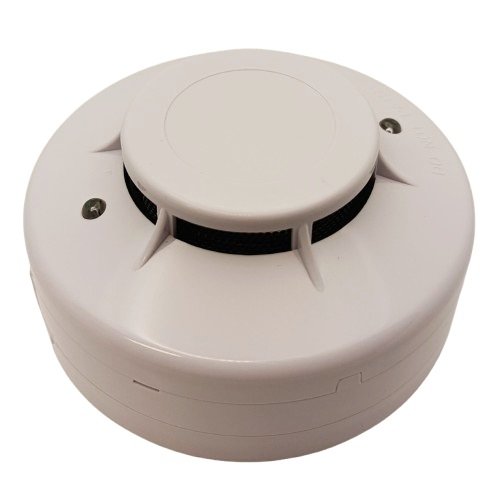

Hismart Photoelectric Smoke Detector, 2-wire

Smoke sensor, with base, for multiple-station system, two-wire

Features:
Smoke detector with a photoelectric camera that detects smoke early from any direction.
The detector is designed for integration into multiple-station security system.
The device operates at standard the two-wire connection allows for simple and reliable connection to the system.
The base is designed for mounting onto electrical junction boxes without additional adapters.
In standby mode, the detector's operation indicator light flashes every 32 seconds.
When smoke is detected, the red LED light lights up and a signal is transmitted to the security system alarm.

Technical data:
Type: photoelectric smoke detector.
Sensitivity: 0.08 - 0.16 dB/m.
Voltage: DC 9V (min.) - 35V (max.).
Standby current: <80uA.
Alarm current: <40mA.
Operating current: max. permissible 60mA.
Alarm indication: red LED on.
Indicator cycle time: 32 sec.
Operating temperature: 0°C~+50°C.
Ceiling mounting.
Dimensions: Ø99mm x 51mm.
Weight: 147g.
Color: white.
Certificates: EN54-7.

Warranty: 24 months.
