| Maximum resolution: | 3840 x 2160 |
| Highlight compensation (hlc): | Jā |
| Gain control type: | Auto/Manual |
| Wi-fi: | No |
| User access level: | User |
| Card reader integrated: | Jā |
| Frame rate: | 30 |
| Region of interest (roi) encoding: | Jā |
| Supported graphics resolutions: | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2592 x 1944/2688 x 1520/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576 |
| Power consumption (power over ethernet (poe)): | 3.9 |
| Power consumption (max): | 9 |
| Noise reduction technology: | 3D noise reduction |
| Vendor homepage: | https://www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/3-Series/Smart-Dual-Light/IPC-HDBW3849E-AS-IL |
| Number of lenses: | 1 |
| Maximum aperture number: | 1 |
| Recognize distance (tele): | 51.5 |
| Recognize distance (wide): | 18 |
| Led type: | IR |
| Night vision: | Jā |
| Noise reduction: | Jā |
| Unit box height: | 0.125 |
| Unit box length: | 0.14 |
| Unit box width: | 0.14 |
| Units per pallet: | Nav |

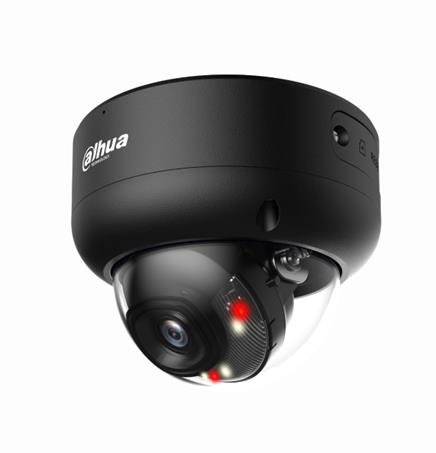

| Description: | 8MP Smart Dual Light Fixed-focal Dome WizSense Network Camera - 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image
- Outputs max. 8 MP (3840 2160)@25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED and warm light , the max. IR illumination distance is 30 m and the max. warm light distance is 30 m
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection; face detection (full image)
- Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and vo
|
| Unit calculated volume: | 0.00245 |
| Unit calculated weight: | 0.724 |
| Units per shipping box: | 1 |
| Smart ir: | Jā |
| Bit rate control: | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Night vision distance: | 50 |
| Number of illumination leds: | 2 |
| Back light compensation (blc): | Jā |
| Observe distance (tele): | 103 |
| Compatible memory cards: | MicroSD (TransFlash) |
| Maximum memory card size: | 512 |
| Ram capacity: | 1024 |
| Rom capacity: | 256 |
| Ethernet lan (rj-45) ports: | 1 |
| Alarm input channels: | 1 |
| Alarm output channels: | 1 |
| Digest authentication: | Jā |
| Mirror: | Jā |
| Password protection: | Jā |
| Video motion detection: | Jā |
| Firmware upgradeable: | Jā |
| Management software: | Smart PSS; DSS; DMSS |
| Dc output voltage: | 12 |
| Observe distance (wide): | 36 |
| Power source type: | DC,PoE |
| Operating temperature (t-t): | -30 - 60 |
| Storage temperature (t-t): | -40 - 60 |
| Mobile operating systems supported: | Android/iOS |
| Diameter: | 122 |
| Height: | 94 |
| Identify distance (wide): | 19 |
| Ethernet interface type: | Fast Ethernet |
| Ethernet lan: | Jā |
| Networking standards: | IEEE 802.1x/IEEE 802.3af |
| Number of users: | 20 |
| Supported network protocols: | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| Number of effective pixels (h x v): | 3840 x 2160 |
| Number of sensors: | 1 |
| Optical sensor size: | 1/2.7 |
| Progressive scan: | Jā |
| Sensor type: | CMOS |
| Signal-to-noise ratio (snr) (panoramic camera): | 56 |
| Auto focus: | Jā |
| Closest focusing distance: | 1.5 |
| Detect distance (tele): | 257.4 |
| Detect distance (wide): | 89.9 |
| Fixed focus: | Jā |
| Focal length range: | 2.7 - 13.5 |
| Focus: | Motorized/Manual |
| Identify distance (tele): | 25.7 |
| Weight: | 560 |
| Package weight: | 740 |
| Number of cameras: | 1 |
| Wide dynamic range (wdr): | Jā |
| Adjustment shutter speed: | Auto/Manual |
| Angle of rotation: | 355 |
| Camera shutter speed: | 1/3 s-1/100,000 |
| Lens viewing angle, diagonal: | 132 |
| Lens viewing angle, horizontal: | 103 |
| Lens viewing angle, vertical: | 58 |
| Minimum illumination: | 0.007 |
| Number of privacy masking areas: | 8 |
| Pan range: | 0 - 360 |
| Tilt angle range: | 0 - 80 |
| Vertical field of view (thermal module): | 58 |
| White balance: | Auto/Custom modes/Lamp/Manual/Natural/Outdoor |
| Audio input channels: | 1.0 |
| Audio output channels: | 1.0 |
| Bit rate range: | 3 - 8192 |
| Built-in microphone: | Jā |
| Signal-to-noise ratio (snr): | 56 |
| Bluetooth: | No |
| Total megapixels: | 8 |
| Video compression formats: | H.264/H.265 |
| Video streaming: | Jā |
| Audio formats supported: | G.711/G.723/G.726/PCM |
| Summary: | Dahua Technology WizSense IPC-HDBW3849E-AS-IL. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, Form factor: Dome. Minimum illumination: 0.007 lx, Angle of rotation: 355Ā°, Vertical field of view (thermal module): 58Ā°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"), Number of effective pixels (H x V): 3840 x 2160 pixels. Signal-to-Noise Ratio (SNR) (panoramic camera): 56 dB |
| Form factor: | Dome |
| Housing material: | Metal |
| Ik code: | IK10 |
| International protection (ip) code: | IP67 |
| Mounting type: | Ceiling |
| Product colour: | Black |
| Built-in light: | Jā |
| Certification: | CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Connectivity technology: | Wired |
| Day/night mode: | Jā |
| Dynamic range: | 120 |
| Placement supported: | Indoor & outdoor |
| Type: | IP security camera |
