| Unit calculated volume: | 0.0016088 |
| Execute disable bit: | Jā |
| Export control classification number (eccn): | 5A992C |
| Idle states: | Jā |
| Commodity classification automated tracking system (ccats): | 740.17B1 |
| Cpu configuration (max): | 1 |
| Intelā® control-flow enforcement technology (cet): | Jā |
| On-board graphics card dynamic frequency (max): | 1650 |
| On-board graphics card id: | 0xA780 |
| On-board graphics card maximum resolution (displayport): | 7680 x 4320 |
| On-board graphics card maximum resolution (edp - integrated flat panel): | 5120 x 3200 |
| On-board graphics card maximum resolution (hdmi): | 4096 x 2160 |
| Intelā® clear video hd technology (intelā® cvt hd): | Jā |
| Market segment: | Desktop |
| Multi-format codec engines: | 2 |
| Graphics output: | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Thermal monitoring technologies: | Jā |
| Thermal solution specification: | PCG 2020A |
| Use conditions: | PC/Client/Tablet/Workstation |
| Unit box width: | 0.065 |
| L2 cache: | 32768 |
| Maximum internal memory: | 192 |
| Unit box length: | 0.165 |
| Cpu family name: | Intel Core i9 |

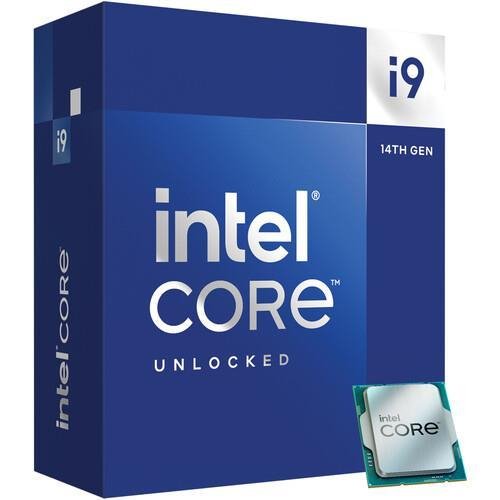

| Model number: | i9-14900K |
| Maximum number of pci express lanes: | 20 |
| Pci express configurations: | 1x16+1x4/2x8+1x4 |
| On-board graphics card model: | Intel UHD Graphics 770 |
| On-board graphics card opengl version: | 4.5 |
| Vendor homepage: | http://www.intel.com/content/www/us/en/products/sku/236773/intel-core-i9-processor-14900k-36m-cache-up-to-6-00-ghz/specifications.html |
| Unit box height: | 0.15 |
| Unit calculated weight: | 0.371 |
| Units per shipping box: | 1 |
| Intelā® hyper threading technology (intelā® ht technology): | Jā |
| Opencl version: | 3.0 |
| Status: | Launched |
| Processor package size: | 45 x 37.5 |
| Pci express slots version: | 4.0/5.0 |
| Scalability: | 1S |
| Intel turbo boost max technology 3.0: | Jā |
| On-board graphics card outputs supported: | DisplayPort 1.4a/Embedded DisplayPort (eDP) 1.4b/HDMI 2.1 |
| On-board graphics card refresh rate at maximum resolution (displayport): | 60 |
| On-board graphics card refresh rate at maximum resolution (edp - integrated flat panel): | 120 |
| On-board graphics card refresh rate at maximum resolution (hdmi): | 60 |
| On-board graphics card base frequency: | 300 |
| On-board graphics card directx version: | 12.0 |
| Supported instruction sets: | AVX 2.0/SSE4.1/SSE4.2 |
| Discrete graphics card model: | Not available |
| Mode-based execute control (mbe): | Jā |
| Tjunction: | 100 |
| Harmonized system (hs) code: | 8542310001 |
| Launch date: | Q4'23 |
| Number of displays supported (on-board graphics): | 4 |
| Number of execution units: | 32 |
| On-board graphics card: | Jā |
| Direct media interface (dmi) revision: | 4.0 |
| Embedded options available: | No |
| Enhanced intel speedstep technology: | Jā |
| Intel 64: | Jā |
| Intel virtualization technology (vt-x): | Jā |
| Intel virtualization technology for directed i/o (vt-d): | Jā |
| Intel vt-x with extended page tables (ept): | Jā |
| Maximum internal memory supported by processor: | 192 |
| Memory bandwidth (max): | 89.6 |
| Memory channels: | Dual-channel |
| Memory types supported by processor: | DDR4-SDRAM/DDR5-SDRAM |
| Discrete graphics card: | No |
| Efficient cores: | 16 |
| Efficient-core base frequency: | 2.4 |
| Efficient-core boost frequency: | 4.4 |
| Maximum number of dmi lanes: | 8 |
| Maximum turbo power: | 253 |
| Memory bandwidth supported by processor (max): | 89.6 |
| Package type: | Box |
| Performance cores: | 8 |
| Performance-core base frequency: | 3.2 |
| Performance-core boost frequency: | 5.6 |
| Processor ark id: | 236773 |
| Processor base power: | 125 |
| Processor boost frequency: | 6 |
| Processor cache: | 36 |
| Processor cache type: | Smart Cache |
| Processor codename: | Raptor Lake |
| Processor cores: | 24 |
| Processor family: | IntelĀ® Coreā„¢ i9 |
| Processor generation: | IntelĀ® Coreā„¢ i9 (14th gen) |
| Processor manufacturer: | Intel |
| Processor model: | i9-14900K |
| Processor operating modes: | 64-bit |
| Processor socket: | LGA 1700 |
| Processor threads: | 32 |
| Stepping: | B0 |
| Ecc: | Jā |
| Intelā® gaussian & neural accelerator (intelā® gna) 3.0: | Jā |
| Intelā® os guard: | Jā |
| Intelā® quick sync video technology: | Jā |
| Intelā® secure key: | Jā |
| Intelā® speed shift technology: | Jā |
| Intelā® standard manageability (ism): | Jā |
| Intelā® thread director: | Jā |
| Intelā® turbo boost technology: | 2.0 |
| Intelā® volume management device (vmd): | Jā |
| Intelā® deep learning boost (intelā® dl boost) on cpu: | Jā |
| Intelā® adaptive boost technology: | Jā |
| Intelā® thermal velocity boost: | Jā |
| Intelā® thermal velocity boost frequency: | 6 |
| Intelā® turbo boost max technology 3.0 frequency: | 5.8 |
| Intelā® aes new instructions (intelā® aes-ni): | Jā |
| Intelā® boot guard: | Jā |
